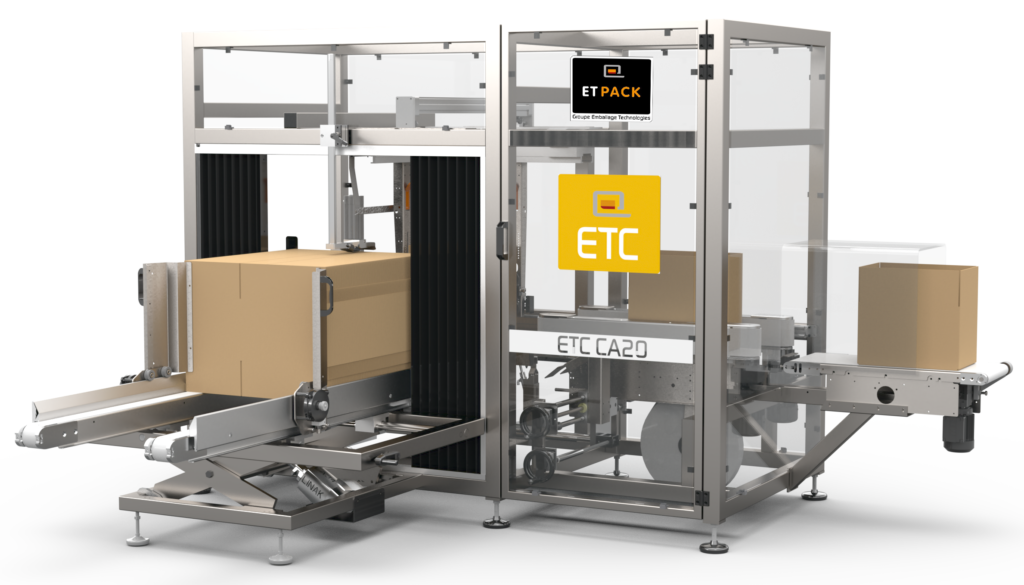

ETC CA20 American case erector

- American savings banksRSC, HSC, FEFCO 200, FEFCO 201

- Type of splines B, C, E single and double wall

- Intermittent operation

- Ergonomic loading of blanks

- High-capacity motorised cardboard magazine

- Quick and easy adjustment using numbered handwheels or handles

- Max speed up to 25 cases/min

- Total control of cases throughout the forming process, guaranteeing correct squareness

- 55 or 75 mm wide adhesive or hot-melt glue closure

- Pneumatic and/or electric actuator

- Asynchronous motors

- Stainless steel frame

- Machine dimensions: 2535 x 2502 x 1800 mm

- Pneumatic supply: 6 bar

- Standard mini/maxi formats :

- Length: 200 - 620 mm

- Width: 150 - 450 mm

- Height: 150 - 650 mm

Additional information

MACHINE SPEED	25 tills/min
