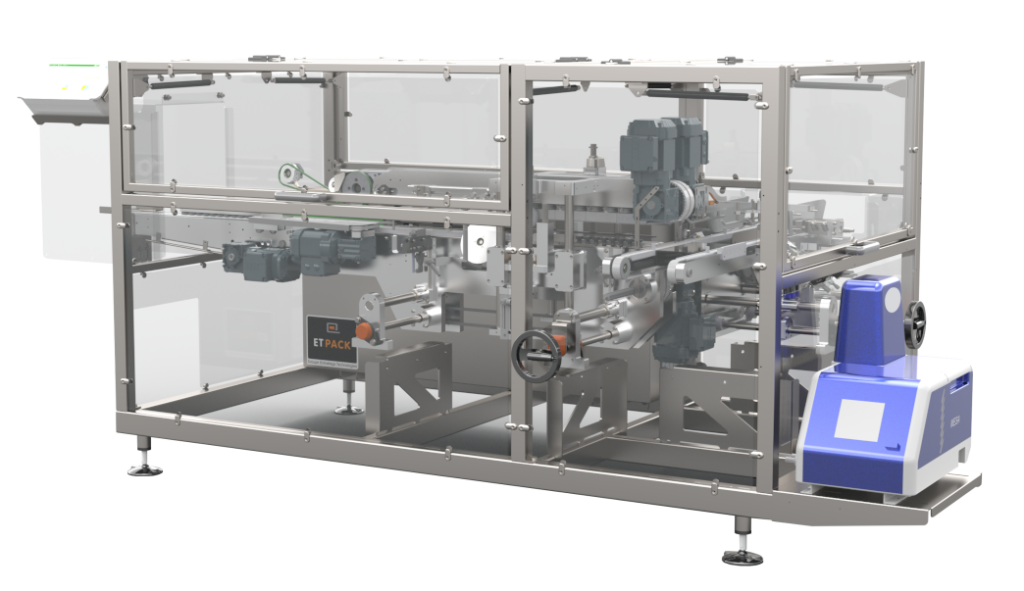

ETL400 closer
GENERAL DESCRIPTION
- Glue sealing machine hot-melt with 90° transfer
- Compact, micro-fluted cardboard
- Applications: Top-Load 3-flap case with adjoining lid
- Right or left-hand machine drive version
- Multiformat machine
- Continuous operation
TECHNICAL DATA
- Timing and synchronisation conveyor
- First STEP folding and gluing of the front cover by motorised belt
- Second STEP for folding and gluing the side flaps
- 7" colour man-machine touch interface
- Stainless steel frame
- Dimensions: 3200x 1400 x 1430 mm
- Power supply: 10 KW
- Pneumatic supply: 6 bar
- Standard mini/maxi formats :
- Length: 85-300 mm
- Width: 80-210 mm
- Height: 30-80mm
Up to 40 cans/min
RELIABLE & COMPACT
Additional information
| Machine speed | |
|---|---|
| Final packaging | |
| Your product | Biscuits, Chocolaterie, Confectionery, Fruit and vegetables, Frozen products, Catering products, Meat and poultry |
