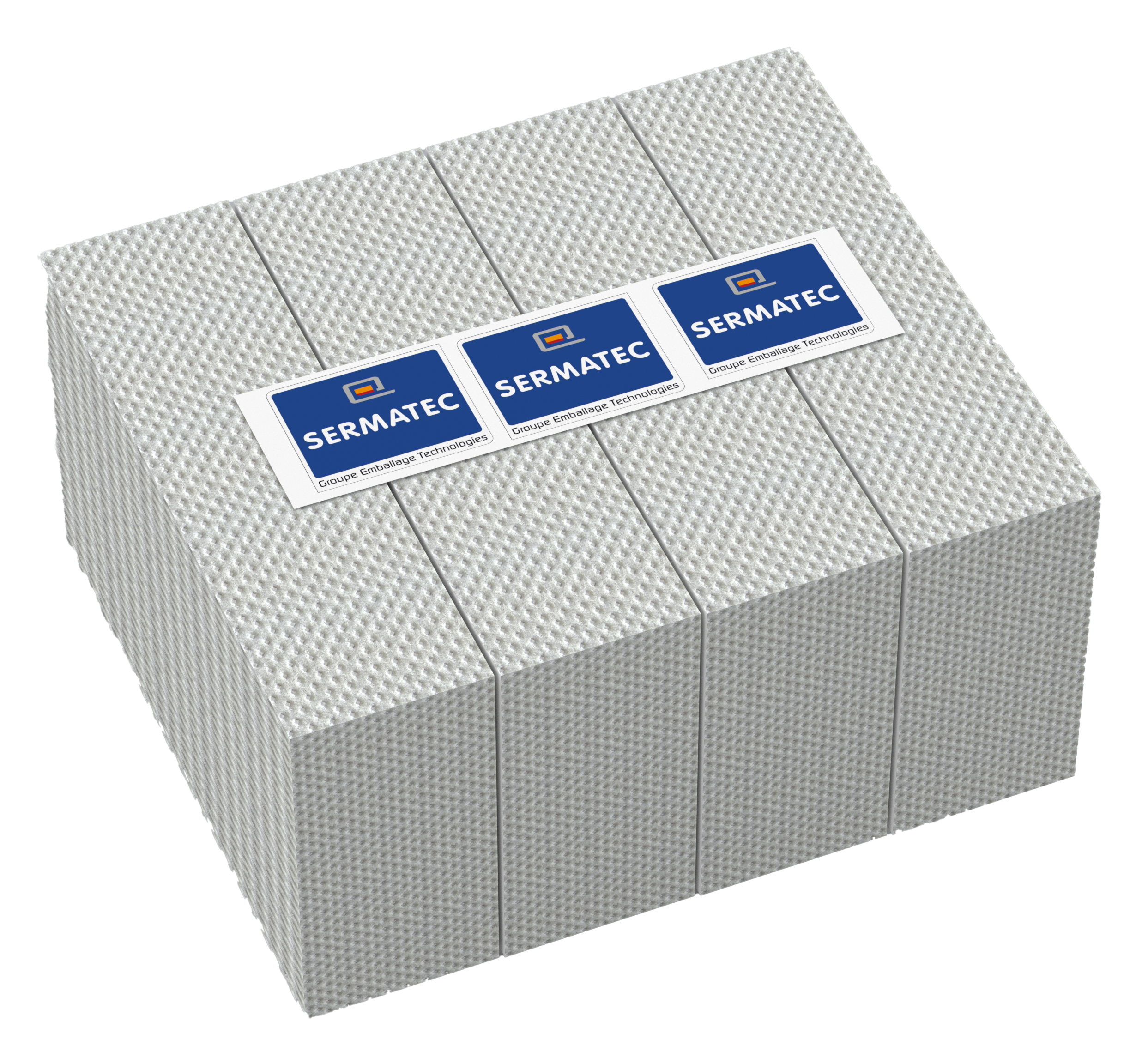

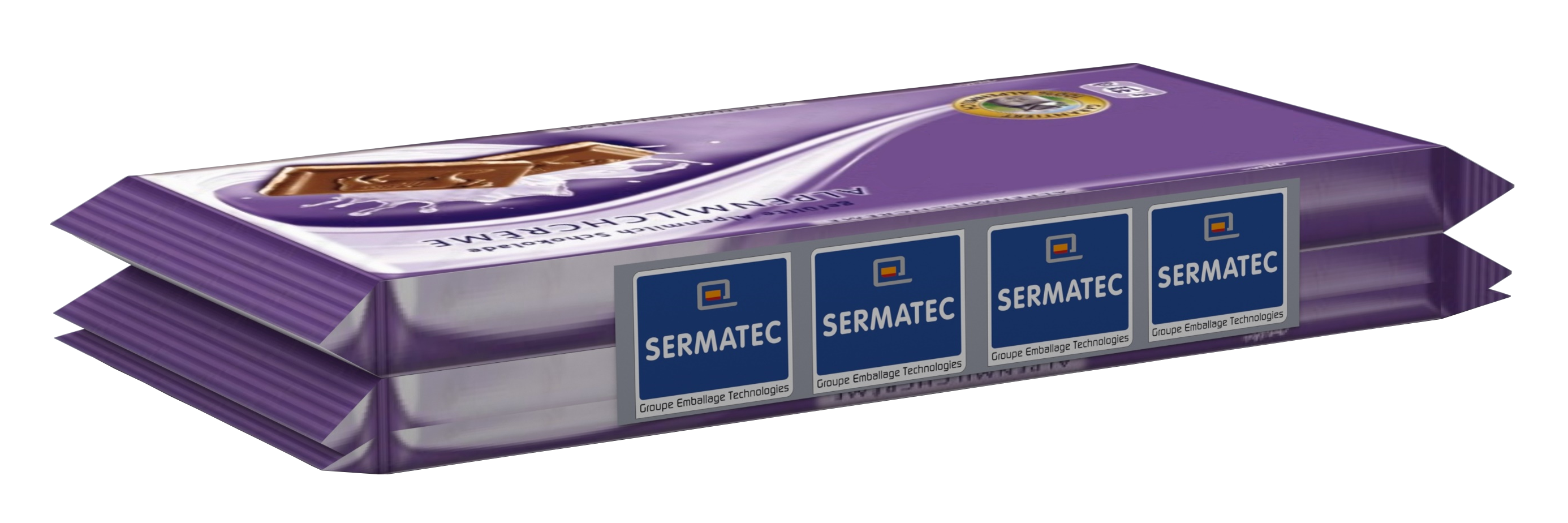

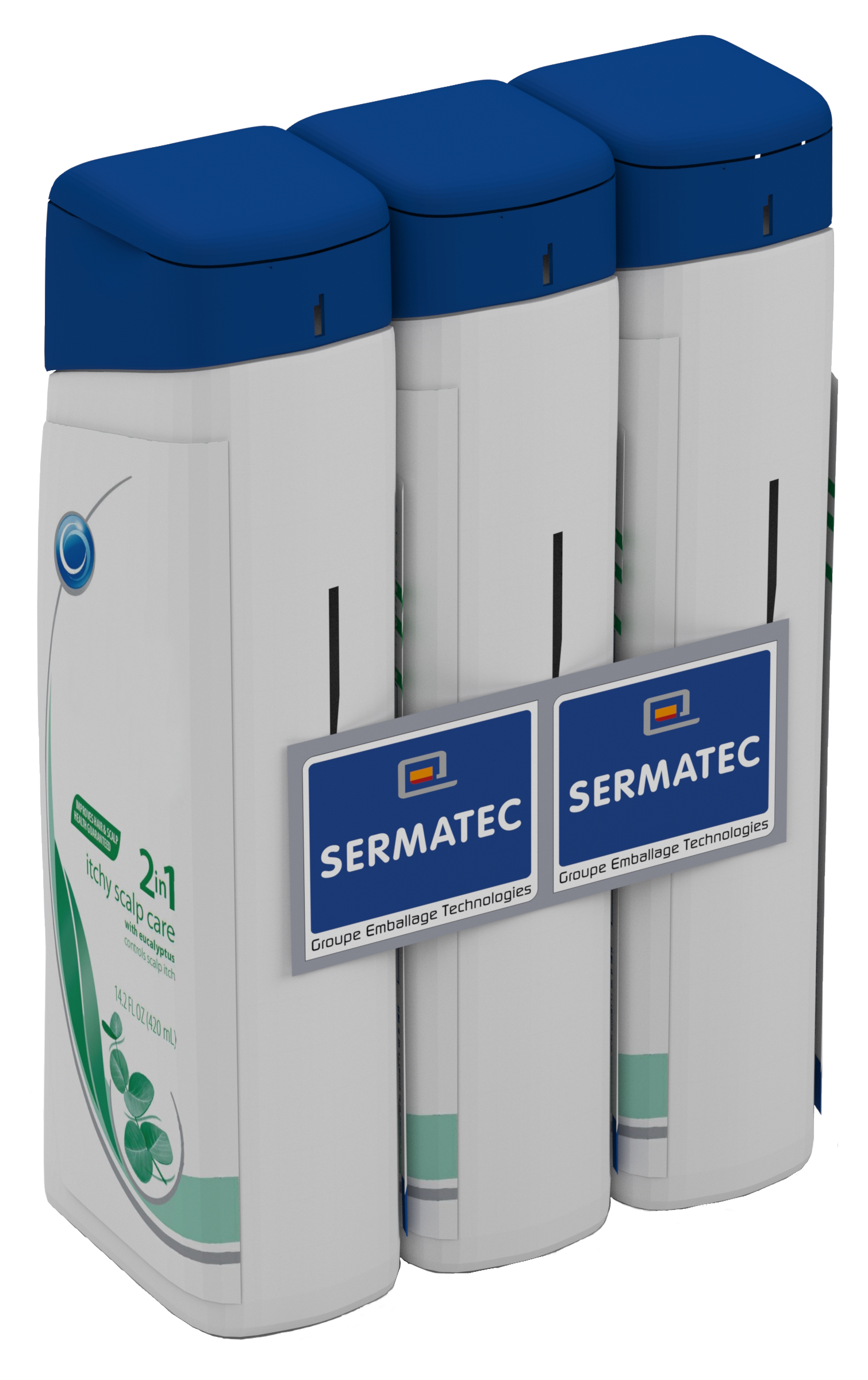

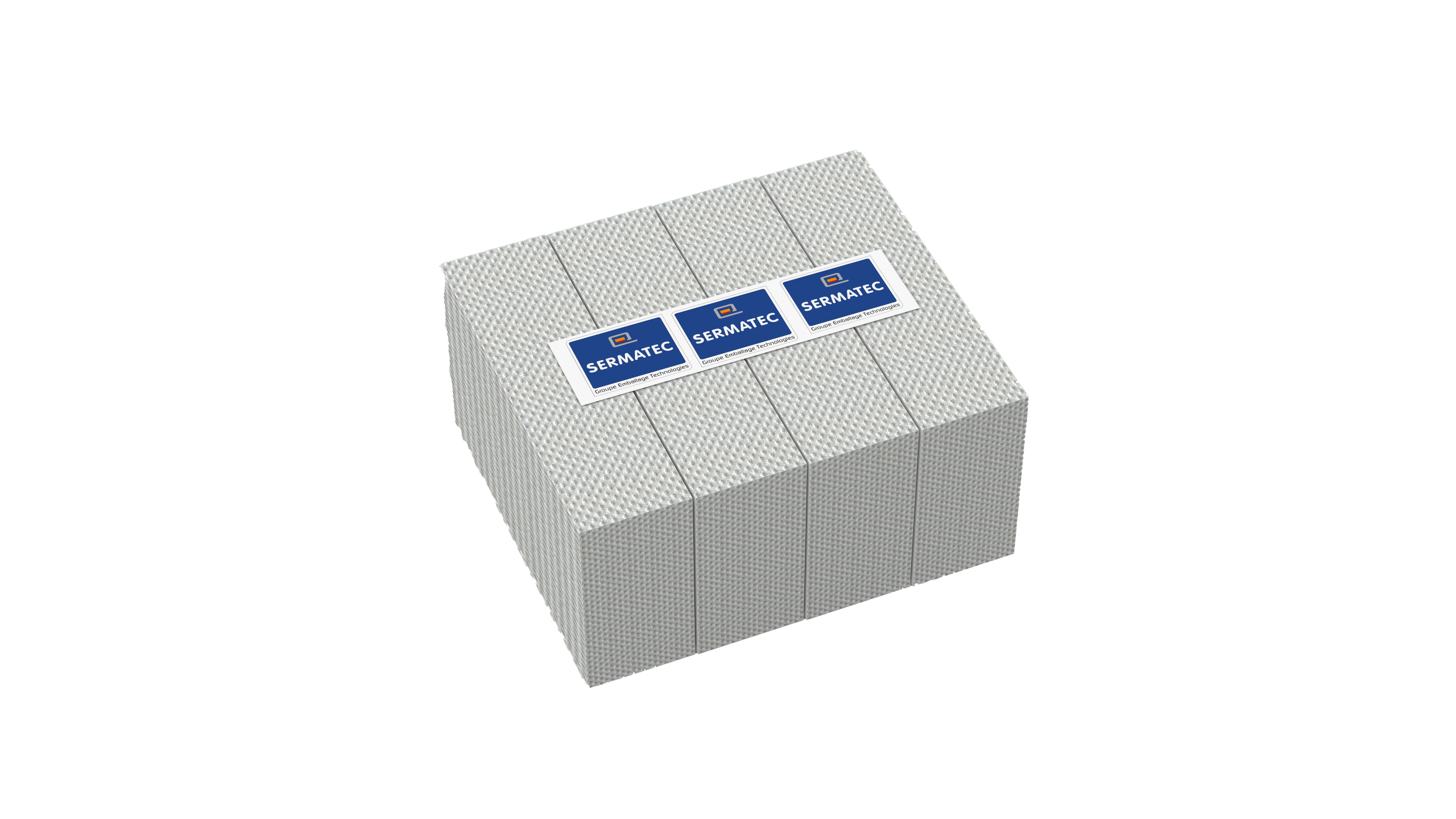

Bundling promotional packs

GENERAL DESCRIPTION

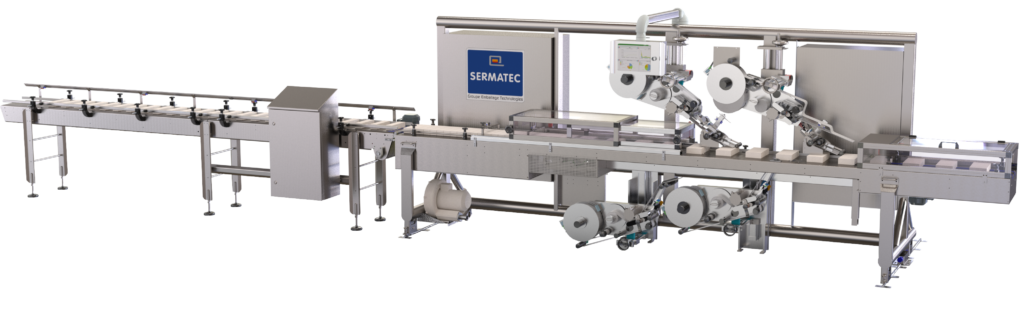

- Automatic line for accumulating, counting and collating rigid or semi-rigid products using self-adhesive labels
- Label the sides of the batch or the top and bottom of the batch
- Continuous operation with no related production stoppages changing label reels
- Automatic switchover to the standby labeller in the event of a fault or end of reel on the labeller during operation
- Centralised control of the line via a touch screen for all functions
- Custom-built to technical specifications and site constraints
- Quick format changes without tools
- Applications: cases, trays, bags, pots, etc.

TECHNICAL DATA
- Pressureless return and accumulation conveyor for rigid products
- Conveyor with front and rear support for semi-rigid products
- Possibility of additional printing on the opaque or transparent label
- Brushless motors
- Stainless steel chassis
- Linear dispensing speed of up to 30 metres/minute as standard (up to 90 metres/minute as an option)
- Standard minimum/maximum formats for individual products :
-
- Length: 100-300mm
- Width: 50-200mm
- Height: 10-250mm
Up to 250 products/min
Elimination of plastic packaging film
