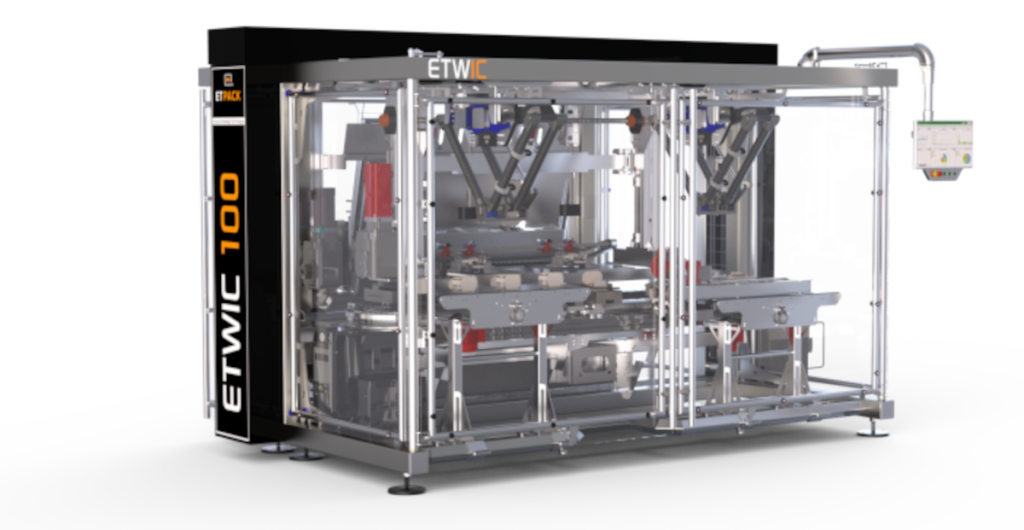

ECOWRAP® ETWIC100 overwrapper
GENERAL DESCRIPTION
- ETWIC100 multi-format overwrapper combining continuous and intermittent motion, with pick & place for feeding flat blanks and robotised folding and closing.
- Modular formats/speeds
- Perfect command of the various movements and functions
- Closure by top locking or gluing
- For all types of cups
- Including automatic feed solutions: batching, multilayer, multirows, orientation, etc.
TECHNICAL DATA
- Large-capacity, easy-load flat blank magazine
- Robotic feeding of blanks, loading and closing of buckets
- ETPACKontrol® dedicated to the packaging industry
- Stainless steel chassis
- Dimensions: 5050 x 1520 x 2050 mm
- Classification: IP54Size of mini/maxi packs :
> Length: 50 - 320 mm / 1.97'' - 12.6''.
> Width: 50 - 250 mm / 1.97" - 9.84
> Height: 20 - 125 mm / 0.79" - 49.21
Modular & robotics
Up to 120 products/min
