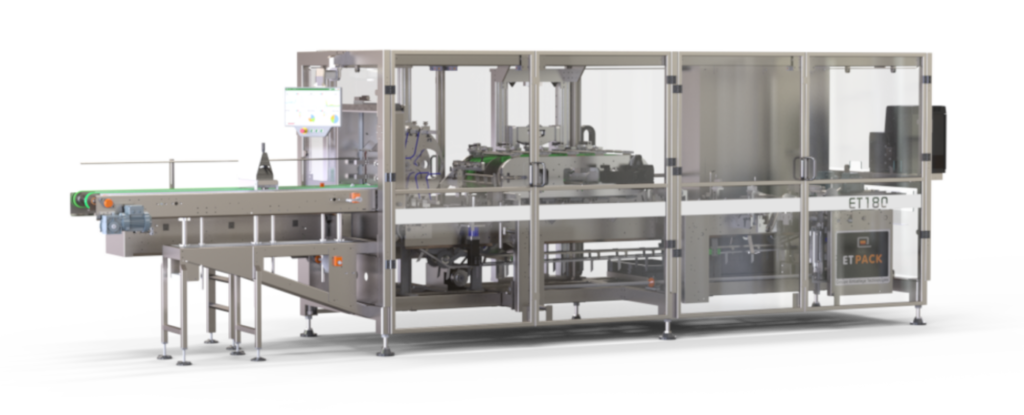

Endload cartoner ET180


OVERVIEW
• Multiformat automatic endload cartoner for box forming, loading and closing
• Continuous motion
• Applications: boxes with or without window
• Dealing with cardboard as well as microfluted board
• Gluing by hot-melt glue melter
• A wide range of automatic infeeds: Unitary products, batching, stacking …
• Options: in-going buckets conveyor, automatic settings, inkjet marker integration, label application, barcode control, control and rejection of not glued boxes …

MAIN FEATURES
• High capacity easy loading blanks magazine
• 4-arm rotary feeder
• Boxes pre-opening vacuum cups
• Push input 12 stations
• HMI up to 15,6”
• Servodriven motors
• Multi-brand Ethercat communication
• Stainless steel frame
• Dimensions: 6800 x 1550 x 2050 mm
267,72’’ x 61,02’’ x 81,71’’
• Classification: IP54
• Power supply: 18 kW
• Pneumatic supply: 6 bars
• Mini/maxi boxes dimensions:
-
- Length : 120 – 320 mm / 4,72” – 12,6”
- Width : 40 – 180 mm / 1,57” – 7,09”
- Height : 25 – 110 mm / 0,98” x 4,33”
VERSATILITY & EFFICIENCY
Up to 200 boxes/min
Additional information
Machine rate | |
---|---|
Final packaging | |
Your product | Biscuits, Chocolate factory, Confectionery, Convenience food, Cosmetics and pharma, Frozen products, Sea products |
