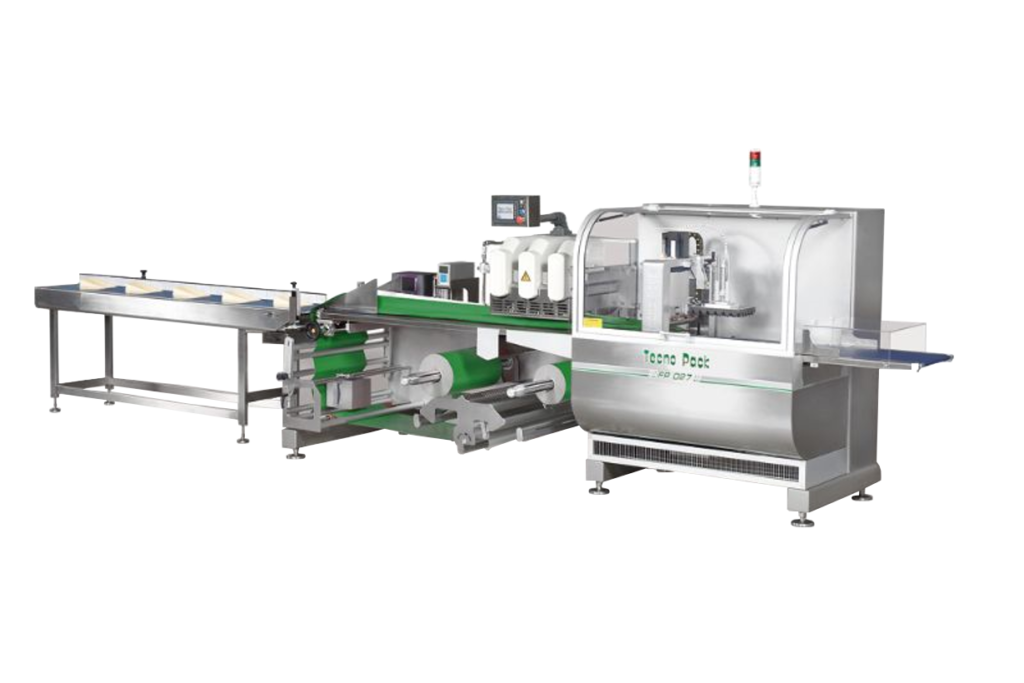

Horizontal flowrappers SEH 027BB
OVERVIEW
• Electronic machine with bottom reel, suitable for packaging fragile, irregular, or heavy products that need to be “carried”
• Horizontal flowrapper with servo-driven sealing jaws for modified atmosphere packaging
• Double reel holders
• Options: Automatic splicer, electrical photocell for printing registration, web width 760/920 mm, modifed atmosphere, coder, powered feed roll, gusseting devices, pack defating devices, 2nd Sealing head, no product / no bag, out of position, no cut, colour “Touch-screen”, easy opening package, outfeed packs control, outfeed conveyor extension, stainless steel version
MAIN FEATURES
• Product dimensions:
• Width: max 350 mm / 13,78’’
• Height: max 180 mm / 7,09’’
• Reel dimensions:
• Reel width: max 520 mm / 20,47’’
• Outside diameter: max 350 mm / 13,78’’
• Core diameter: 70 ÷ 76 mm / 2,76’’ – 2,99’’
• Machine dimensions: 5400 x 1320 x 1750 mm
212,6” x 56,97” x 68,9”
• Weight: 1300 kg
• Packaging materials: heat-sealable, coated, cold-sealable, polyethylene
For heavy or adhesive products
UP TO 100 PPM/MIN
