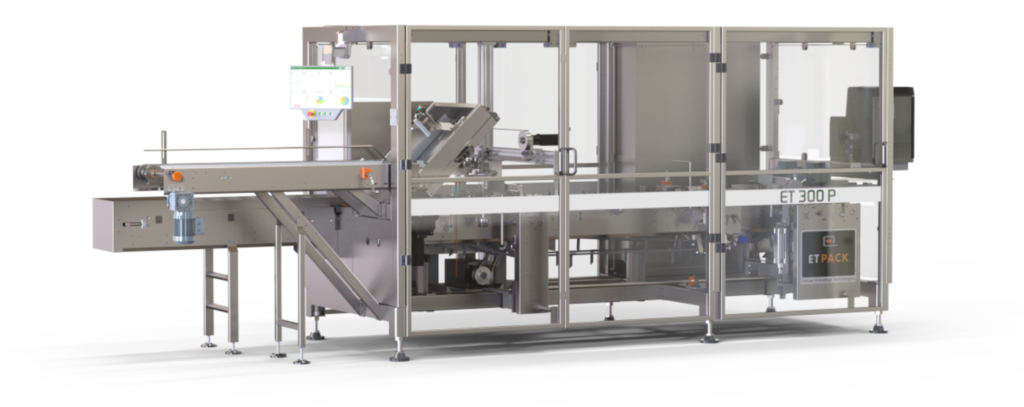

Endload cartoner ET300P
OVERVIEW
• Multiformat intermittent motion endload cartoner for boxes forming, loading and closing
• Applications: boxes with or without window
• Hot-melt gluing or tuck-in
• Cardboard as well as microfluted
• A wide range of automatic infeeds: Unitary products, batching, stacking …
• Options: inkjet marker integration, label application, barcode control, control and rejection of not glued boxes …
MAIN FEATURES
• High capacity easy loading magazine
• Pendular feeder
• Top control
• HMI up to 15,6”
• Axis controller and servodriven motors
• Multi-brand Ethercat communication
• Stainless steel frame
• Dimensions: 5050 x 1520 x 2050 mm
198,82” x 59,84” x 80,71”
• Classification : IP54
• Power supply: 10 kW
• Air supply: 6 bars
• Mini/maxi formats:
- Length : 120 – 360 mm / 4,72” – 14,17”
- Width : 40 – 320 mm / 1,57” – 12,6”
- Height : 25 – 110 mm / 0,98” – 4,33”
ACCURACY & SQUARENESS
Up to 40 boxes/min
Additional information
| Machine rate | |
|---|---|
| Final packaging | |
| Your product | Biscuits, Chocolate factory, Confectionery, Convenience food, Cosmetics and pharma, Frozen products, Meat, Sea products |
