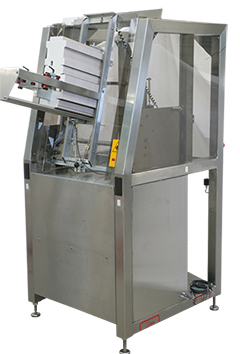

Formers ETL60-V


OVERVIEW
• Box forming from a flat blank
• Hot melt gluing
• Dealing with cardboard as well as micro fluted board
• For trays, boxes with lid, dust-flaps box, with or without conicity, trays with 4 to 8 sides…
• 1 or 2 heads
• Multiformat stainless steel machine

MAIN FEATURES
• Pendular feeder with vacuum cups
• Positive indirect transfer of blanks
• High capacity easy loading magazine
• Interchangeable toolsets
• Servodriven motors
• Stainless steel frame
• Dimensions: 1032 x 1135 x 2210 mm
40,63” x 44,69 x 87”
• Classification: IP54
• Power supply: 2,5 kW
• Pneumatic supply: 6 bars
• Mini/maxi formats:
• Length : 90 – 480 mm / 3,54” – 18,90”
• Width : 65 – 210 mm / 2,56” – 8,27”
• Height : 20 – 90 mm / 0,79” – 3,54”
UP TO 60 BOXES/MIN
ERGONOMICS & USER FRIENDLY
Additional information
Machine rate | |
---|---|
Final packaging | |
Your product | Biscuits, Chocolate factory, Convenience food, Frozen products, Fruits & Vegetables |
