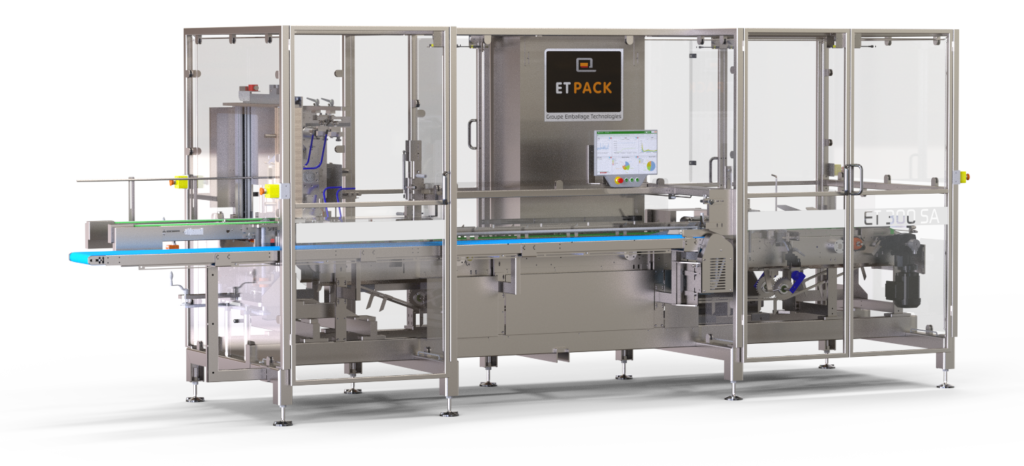

Endload cartoner ET300SA


OVERVIEW
• Multiformat endload cartoner for boxes forming and gluing
• Semi-automatic cartoner: automatic box forming, manual loading by 1 or 2 operators, automatic box closing
• Applications : Boxes with or without window
• Continuous motion
• Gluing by hot-melt glue melter
• Dealing with cardboard as well as microfluted board
• Manual loading by operators
• Product infeed by conveyor belt
• Options: inkjet marker integration, label application, control and rejection of not glued boxes…

MAIN FEATURES
• High capacity easy loading magazine
• 2-arm rotary feeder
• Boxes pre-opening vacuum cups
• HMI up to 15,6”
• Axis controller and servodriven motors
• Multi-brand Ethercat communication
• Stainless steel frame
• Dimensions: 5705 x 1420 x 2050 mm
224,61” x 55,91” x 80,71”
• Classification: IP54
• Power supply: 10 kW
• Pneumatic supply: 6 bars
• Mini/maxi boxes dimensions:
-
- Length : 120 – 360 mm / 4,72” – 14,17”
- Width : 40 – 260 mm / 1,57” – 10,24”
- Height : 25 – 110 mm / 0,98”- 4,33”
VERSATILITY & USER FRIENDLY
Up to 60 boxes/min
Additional information
Machine rate | |
---|---|
Final packaging | |
Your product | Biscuits, Chocolate factory, Confectionery, Convenience food, Cosmetics and pharma, Frozen products |
