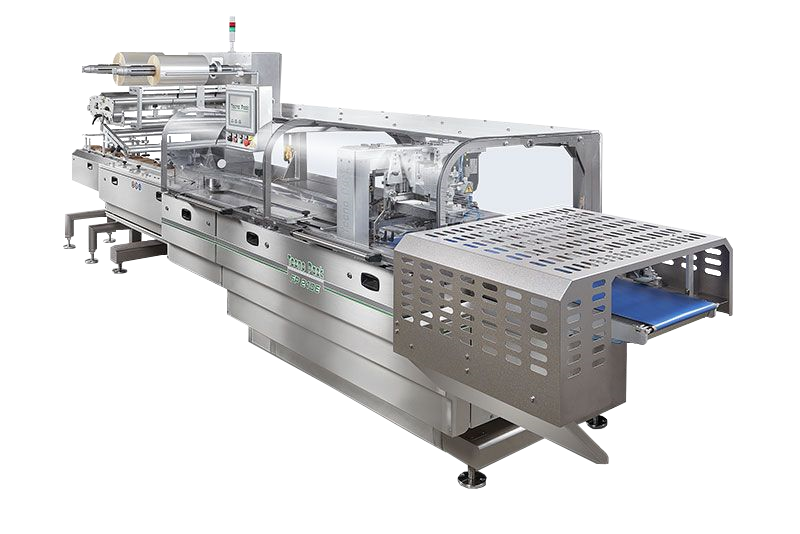

Horizontal flowrappers SEH210
OVERVIEW
• Specially designed for modified atmosphere packaging, ensuring bag sealing through a special design of the transverse sealing jaws
• The cantilevered frame and easy access reduce to a minimum the need for maintenance and cleaning interventions
• Dual motorized reel holders
• Options: automatic splicer, photocell for printing registration, web width 760/920 mm, modified atmosphere, coder, powered feed roll, gusseting devices, pack deflating devices, 2nd Sealing head, no product / no bag, out of position, no cut, colour “Touch-screen » , easy opening package, outfeed packs control, outfeed conveyor extension, stainless steel version
MAIN FEATURES
• Product dimensions:
• Length: 50 – 600 mm / 1,97’’ – 23,62’’
• Width: 20 – 400 mm / 0,79’’ – 15,75’’
• Height: 5 – 180 mm / 0,2’’ – 7,09’’
• Reel dimensions:
• Reel width: 520 mm / 20,47’’
• Outside diameter: max 350 mm / 13,78’’
• Core diameter: 70 ÷ 76 mm / 2,76’’ – 2,99’’
• Machine dimensions: 5400 x 1320 x 1750 mm
212,60” x 51,97” x 68,90”
• Packaging materials: heat-sealable
High-speed packaging machine for creating sealed welds
UP TO 100 PPM/MIN
Additional information
| Machine rate | |
|---|---|
| Final packaging | |
| Your product | Bakery, Chocolate factory, Convenience food, Frozen products, Fruits & Vegetables, Meat, Non-food product, Pastry |
