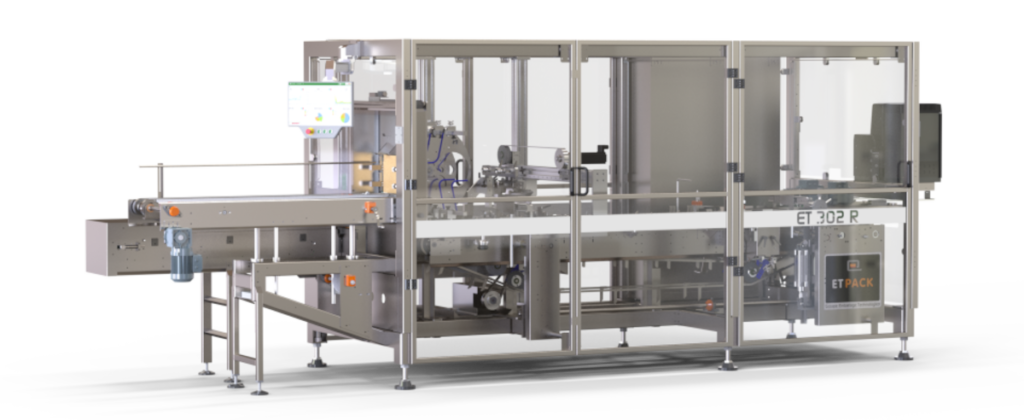

Endload cartoner ET300R

Emballage secondaire-Étuyeuse-ET300R
picto-descriptif

DESCRIPTIF GÉNÉRAL

• Multiformat intermittent motion endload cartoner for boxes forming, loading and closing

• Applications: boxes with or without window

• Hot-melt gluing or tuck-in

• Simple or double push

• Cardboard as well as microfluted

• A wide range of automatic infeeds: Unitary products, batching, stacking …

• Une large gamme d’alimentations automatiques : gestion de produits unitaires, mise en lot et regroupement, empilage…

• Options: inkjet marker integration, label application, barcode control, control and rejection of not glued boxes …

picto-caractéristique

CARACTÉRISTIQUE TECHNIQUES

• High capacity easy loading magazine

• Rotary feeder

• Boxes pre-opening vacuum cups

• Top control

• HMI up to 15,6”

• Axis controller and servodriven motors

• Multi-brand Ethercat communication

• Stainless steel frame

• Dimensions : 5050 x 1520 x 2050 mm

198,82” x 59,84” x 80,71”

• Classification: IP54

• Power supply: 10kW

• Air supply: 6 bars

• Mini/maxi formats:

  • Lenght : 120 – 360 mm / 4,72” – 14,17”
  • Width : 40 – 320 mm / 1,57” – 12,6”
  • Height : 25 – 105 mm / 0,98” – 4,33”

ACCURACY & SQUARENESS

UP TO 60 BOXES/MIN

Nous contacter
Télécharger la fiche technique

Additional information

SPEED

Up to 60 boxes/min
PRODUCTS

Biscuits, Chocolate & Confectionery, Biscuit, Cosmectis & Pharma industry, Sea food, Frozen food, Convenience food, Meat
