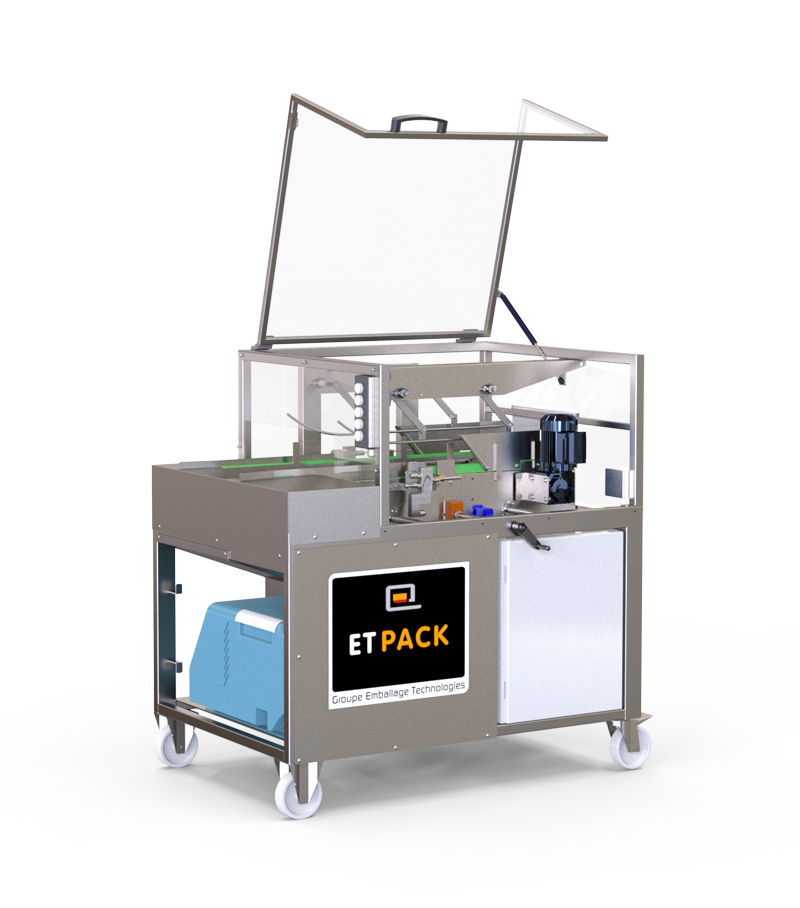

Endload cartoner ET300MC


OVERVIEW
• Multiformat endload cartoner for closing by gluing
• Dealing with cardboard as well as microfluted
• Continuous motion
• Applications: All products to be put in boxes
• Options: inkjet marker integration, extended infeed conveyor

MAIN FEATURES
• Integrated electrical cabinet
• Connexion on mains socket
• Variable speed
• Torque limiter on infeed conveyor
• Stainless steel frame on wheels
• Dimensions : 1270 x 805 x 1230 mm
50” x 31,69” x 48,43
• Classification : IP54
• Power supply: 5kW
• Air supply: 6 bars
• Mini/maxi formats :
-
- Length : 100 – 320 mm / 3,94” – 12,6”
- Width : 80 – 340 mm / 3,15” – 12,6”
- Height : 20 – 80 mm / 0,79” – 3,15”
Small footprint, mobile & versatile
Up to 30 boxes/min




Additional information
Machine rate | |
---|---|
Final packaging | |
Your product | Biscuits, Chocolate factory, Confectionery, Convenience food, Cosmetics and pharma, Frozen products, Meat, Sea products |
