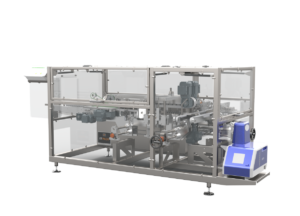

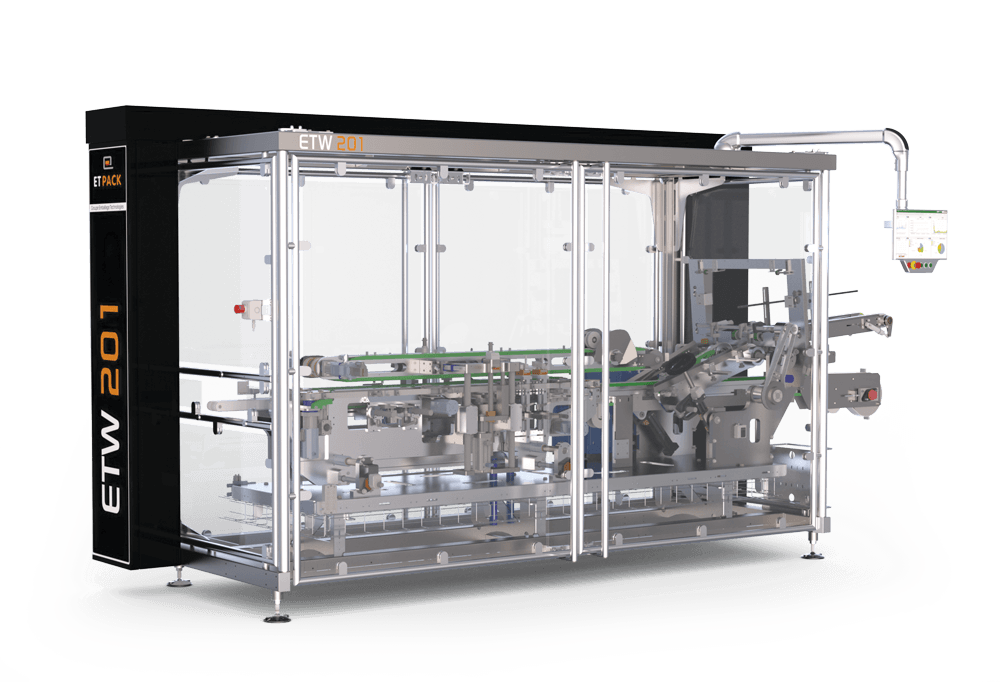

Wraparound cartoner ECOWRAP® ETW201

• Multiformat versatile wraparound cardboard sleever dealing with flat blanks

• Dealing with cardboard as well as microfluted board

• Continuous motion

• Interchangeables toolsets for fast, accurate and easy formats changeovers

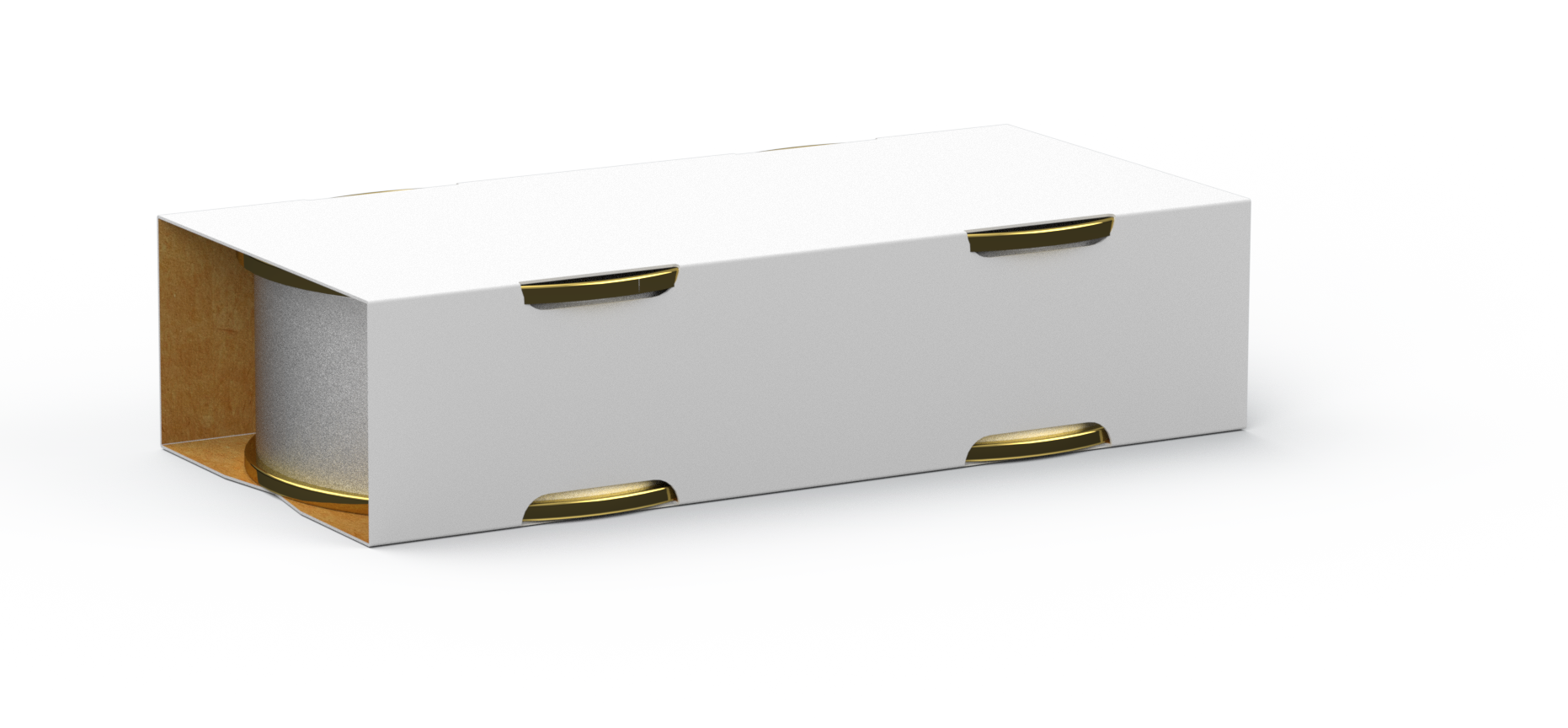

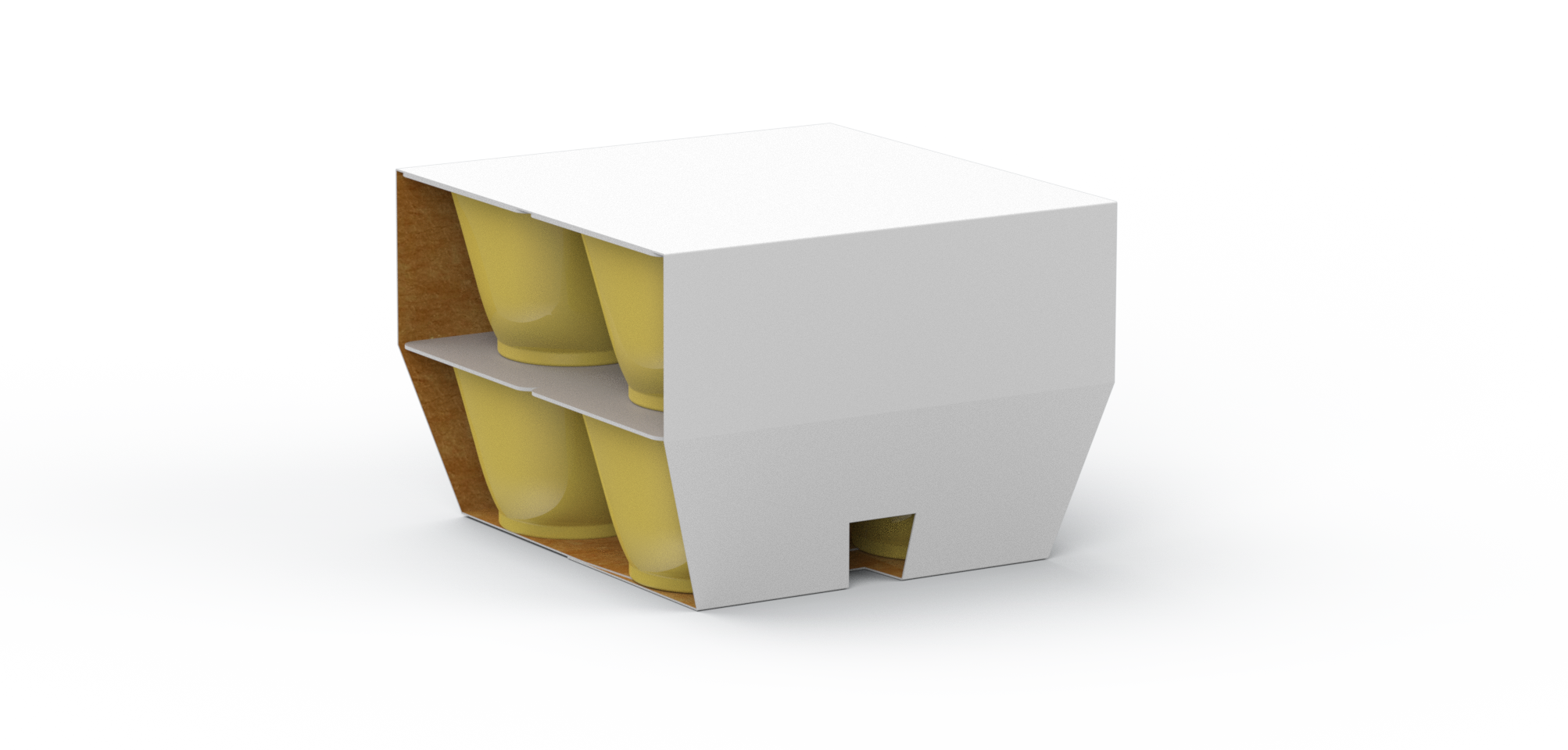

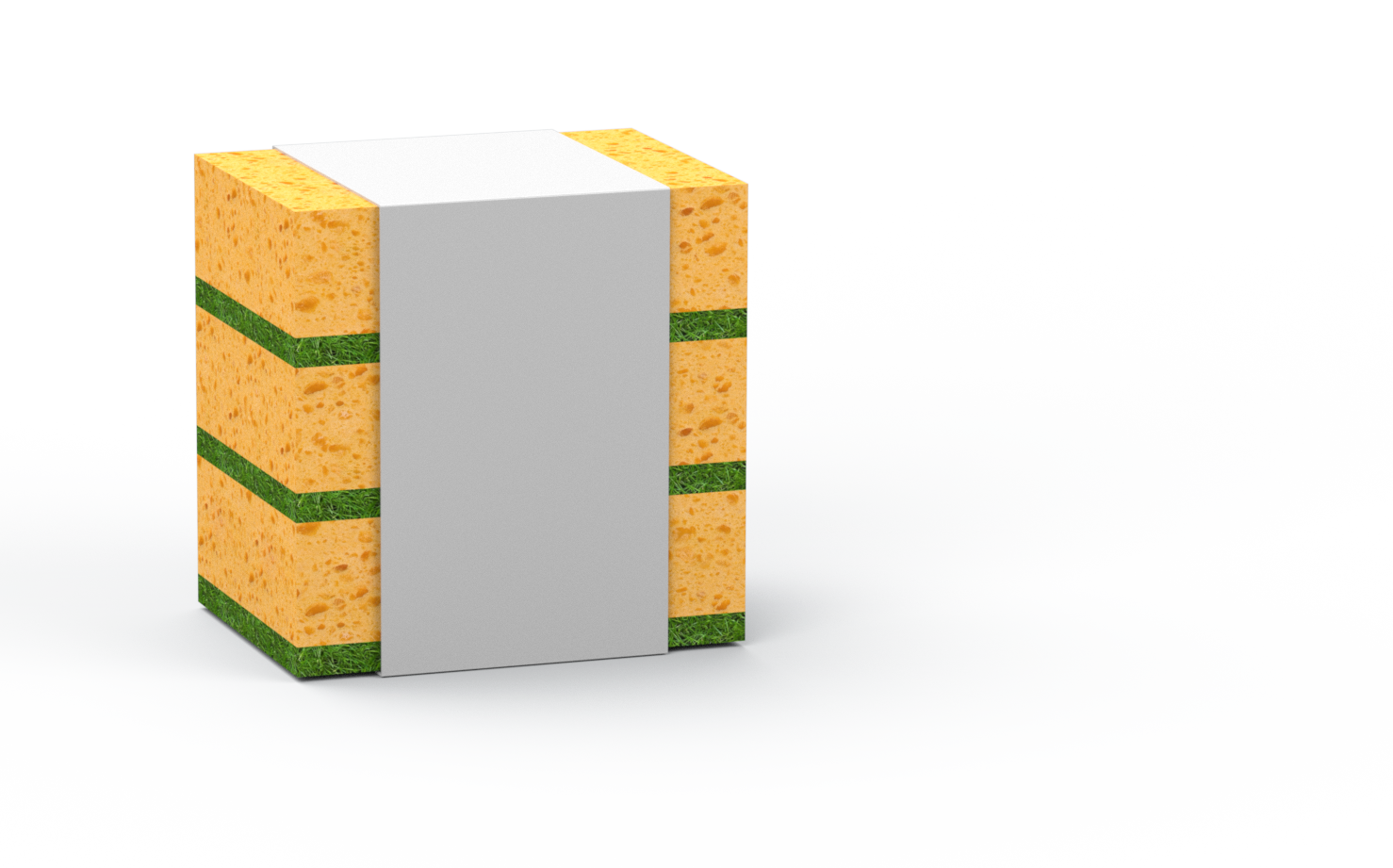

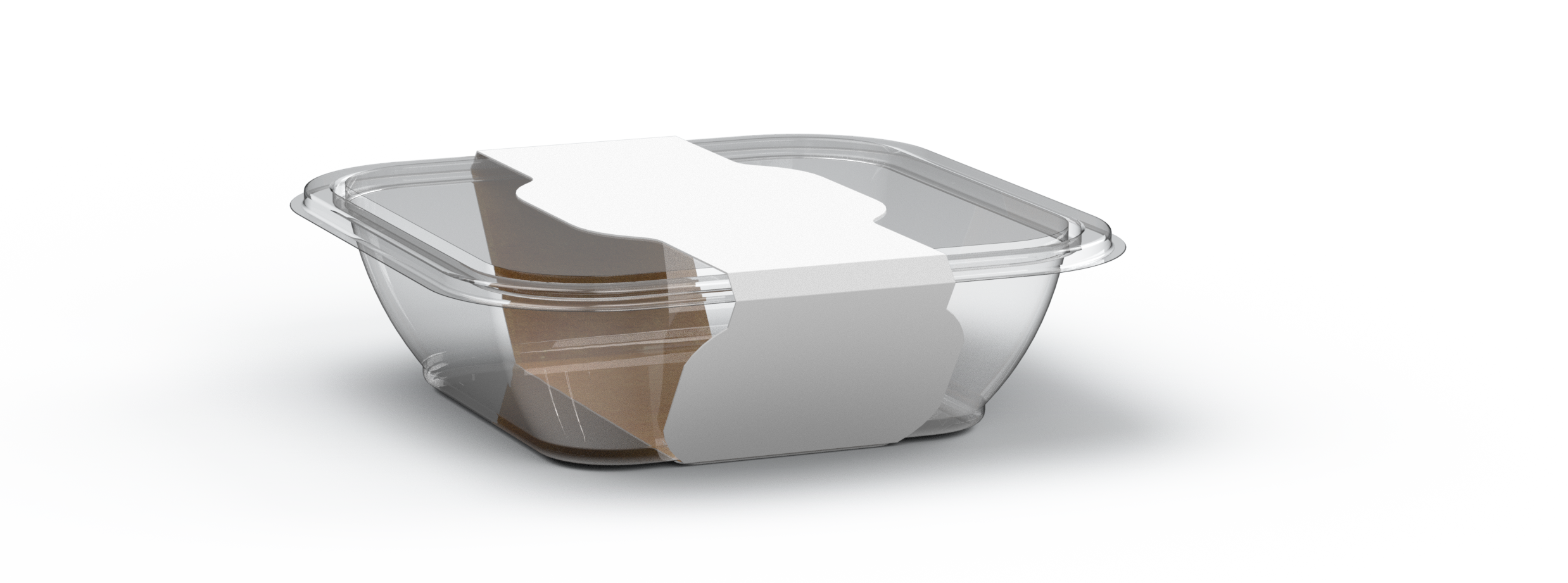

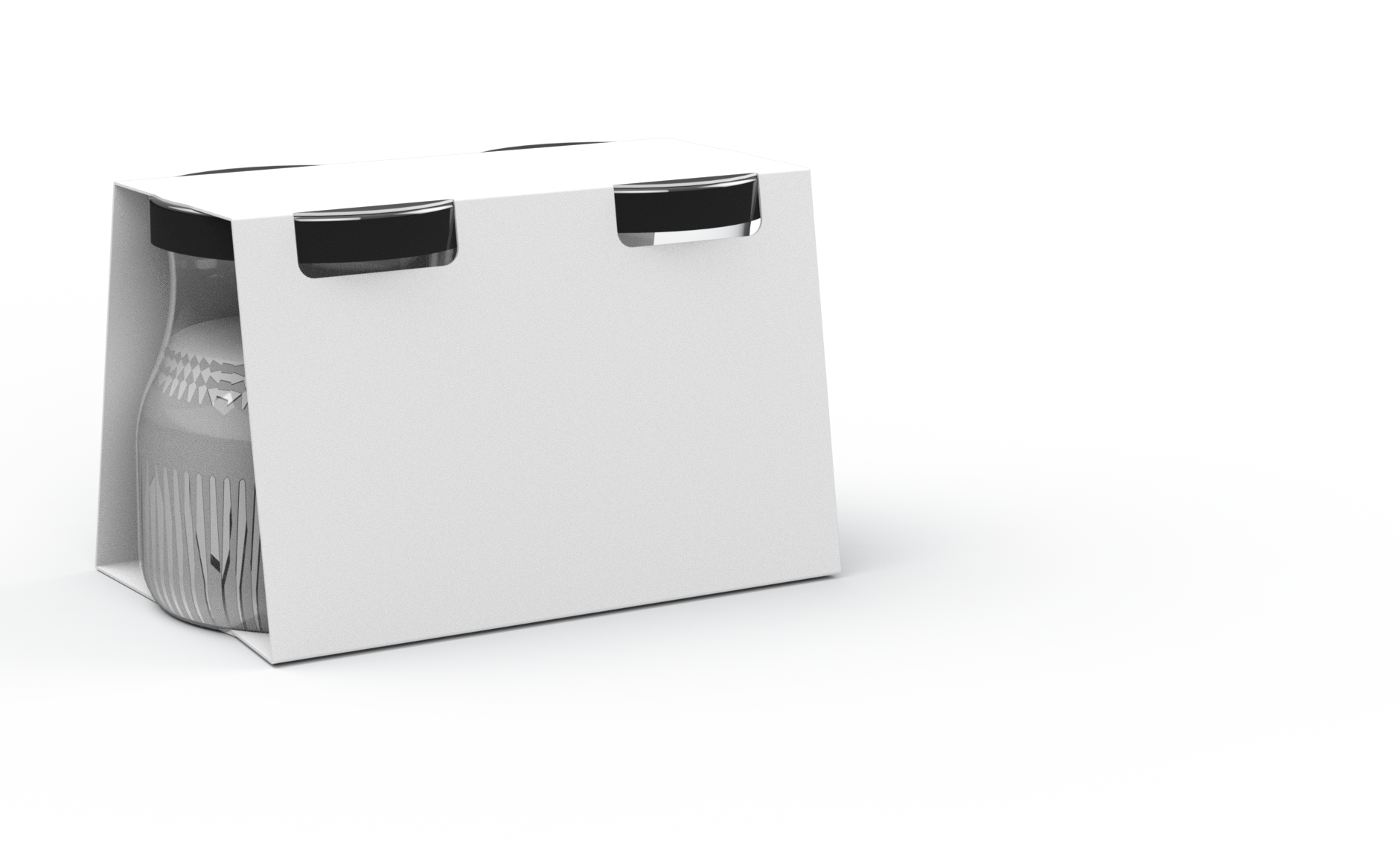

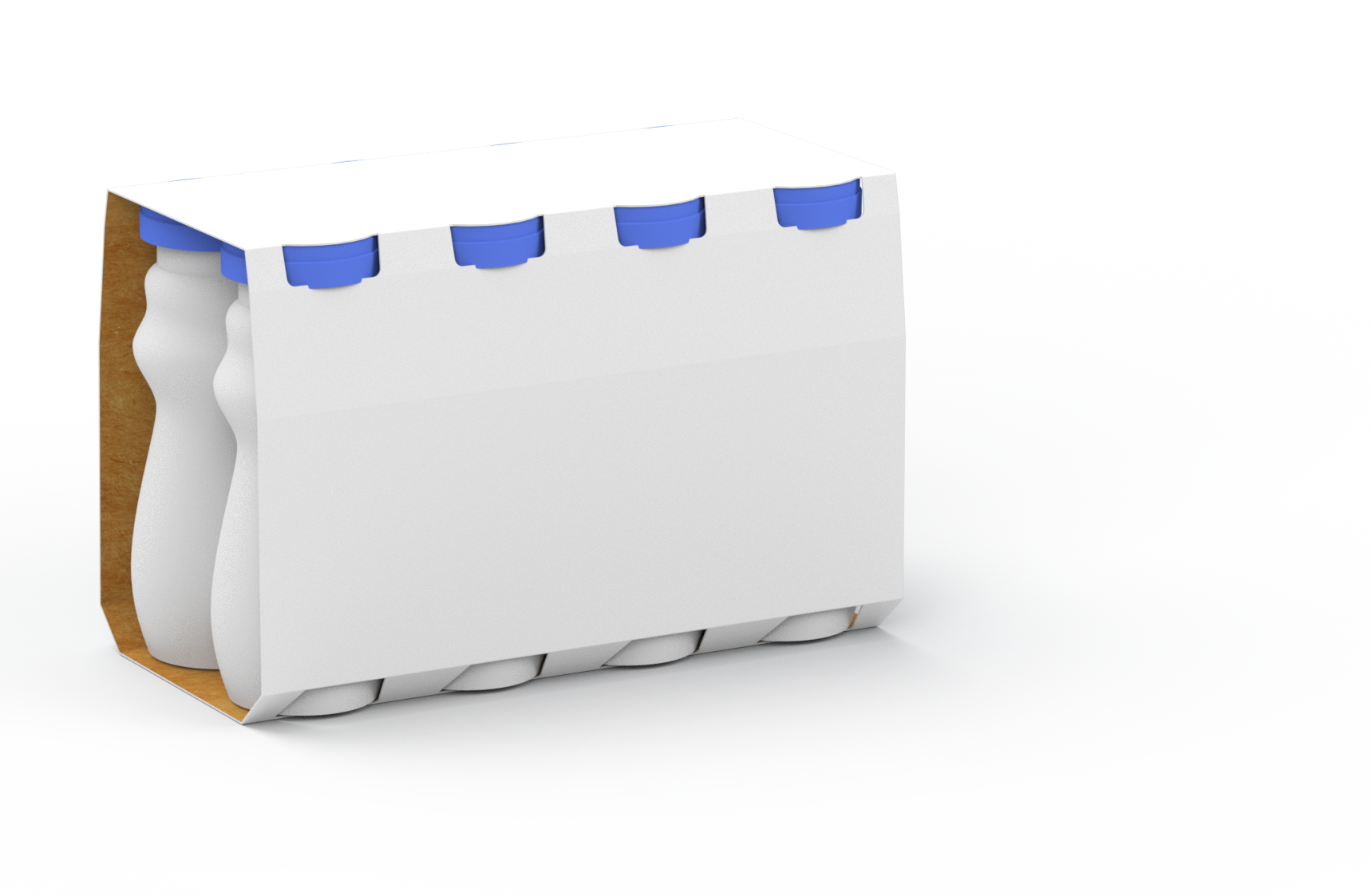

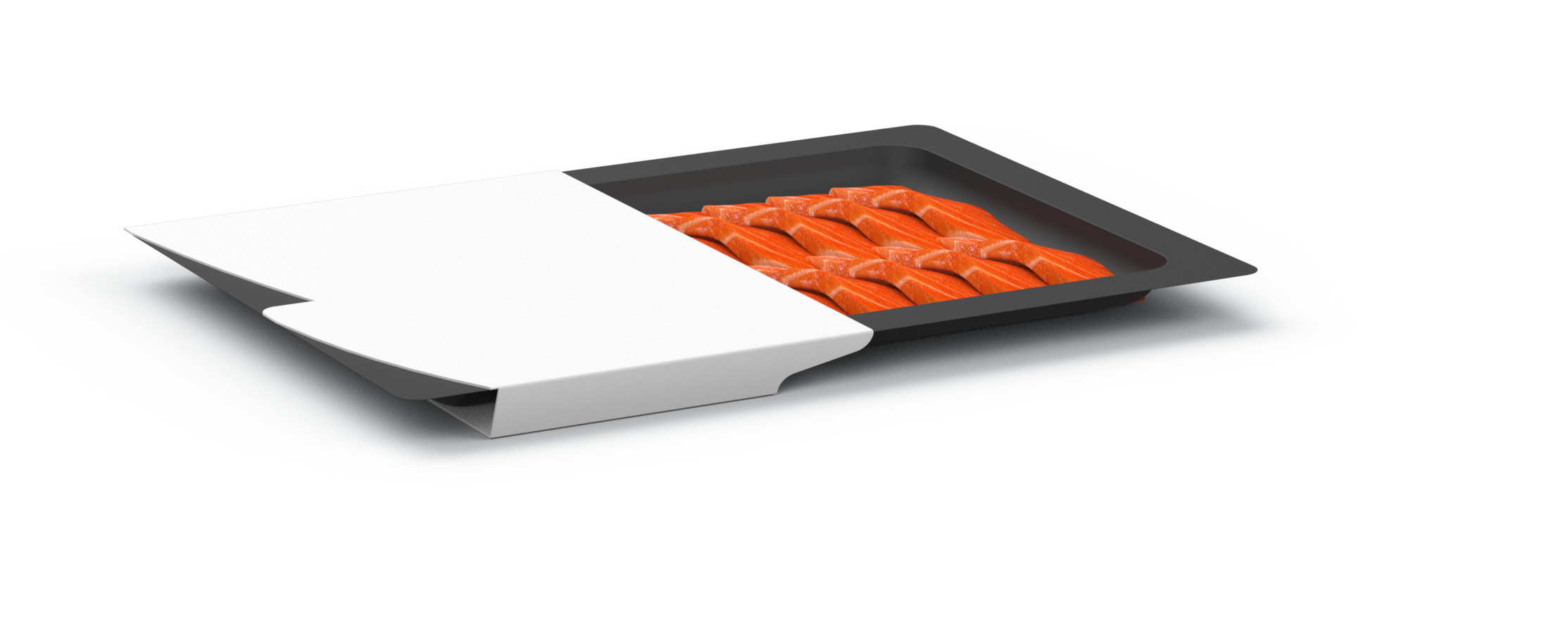

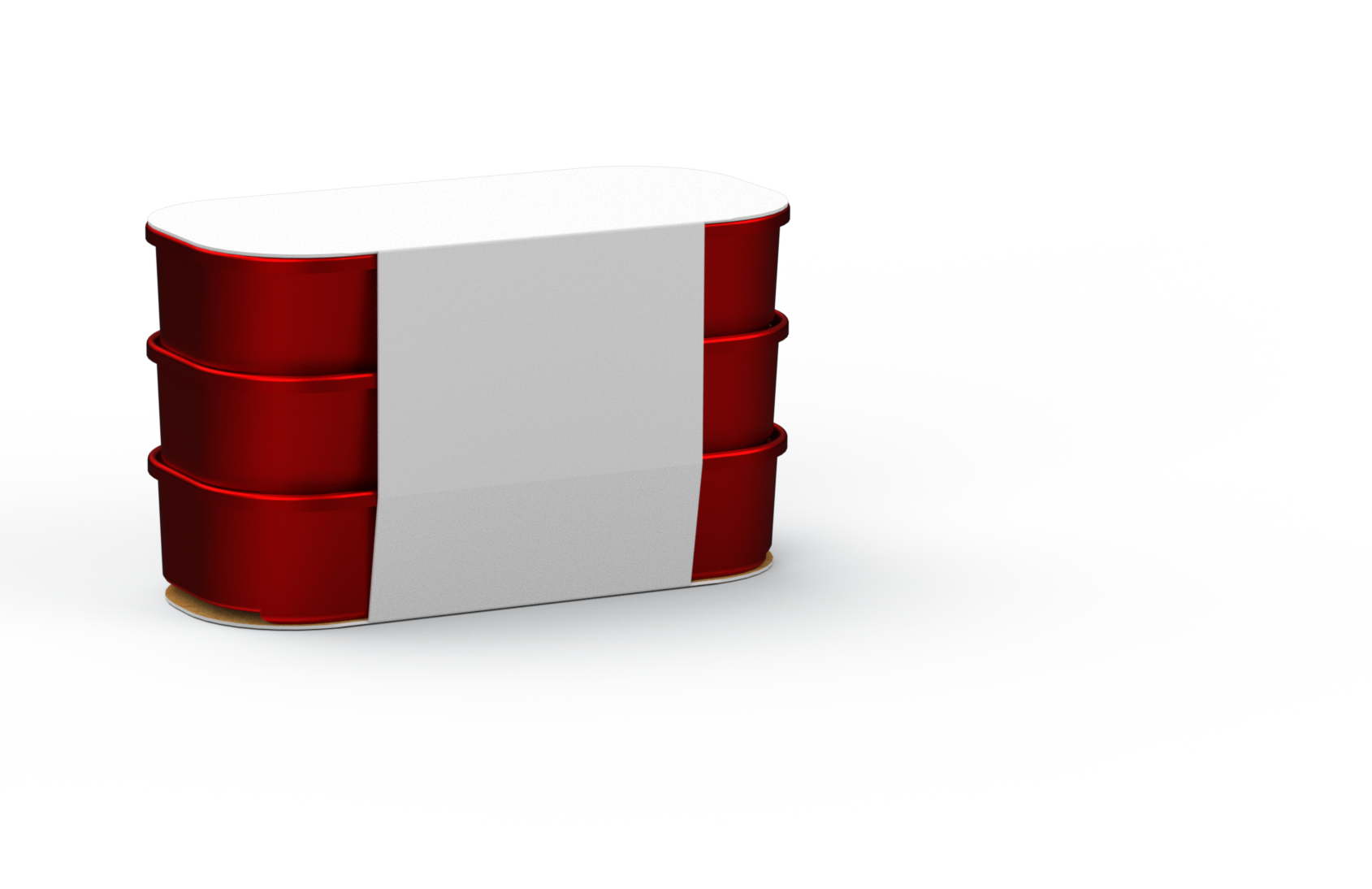

• For trays, dairy products, cans, household products…

• Manual or automatic infeed dealing with batches, multilayers, orientation…

• High capacity blanks magazine

• Pendular feeder

• End of cycle when machine stops

• Gluing underneath the pack by hot-melt glue application system

• HMI up to 15,6”

• Servodriven motors

• Multi-brand Ethercat communication

• Stainless steel frame

• Dimensions: 4735 x 1388 x 2185 mm

186,42” x 54,65” x 86,02” mm

• Classification : IP54

• Air supply: 6 bars

• Mini/maxi packs sizes:

- Length : 80–300 mm / 3,15”-11,81”
- Width : 50–300 mm / 1,97”-1,81”
- Height : 10–160 mm / 0,39”-6,30”

Additional information

Machine rate	Up to 80 pack/min
Final packaging	Lid, Sleeves
Your product	Chocolate factory, Confectionery, Convenience food, Dairy product, Fruits & Vegetables

Machine rate	Up to 60 ppm
Final packaging	Boxes
Your product	Biscuits, Chocolate factory, Confectionery, Convenience food, Cosmetics and pharma, Frozen products, Sea products

Machine rate	Up to 90 ppm
Final packaging	Boxes
Your product	Biscuits, Chocolate factory, Confectionery, Convenience food, Frozen products, Fruits & Vegetables
