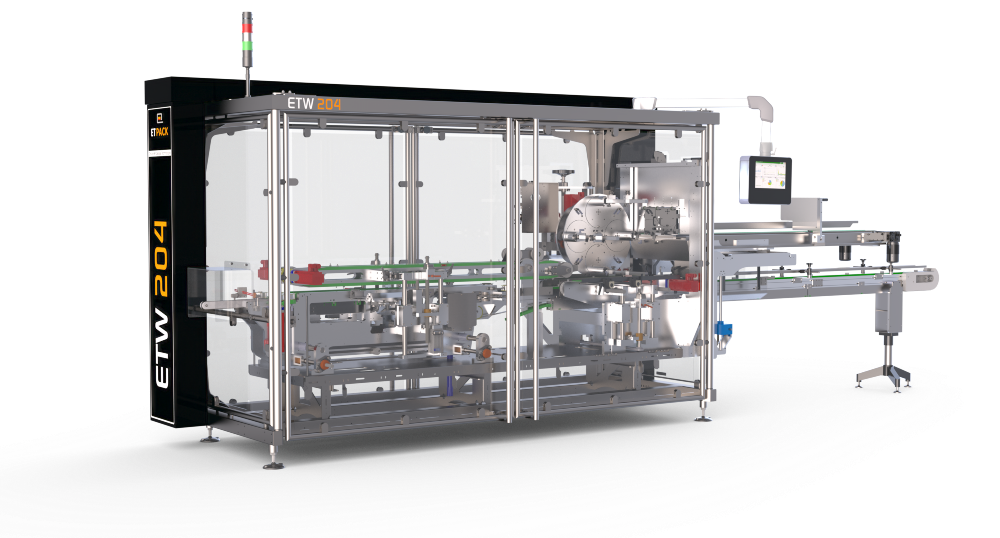

Wraparound cartoner ECOWRAP® ETW204
OVERVIEW
• Multiformat wraparound cardboard sleever dealing with 3-side U-covers as well as complete sleeves from a flat blank
• Solid board as well as micro-fluted
• Continuous motion
• Interchangeable toolsets
• For your products such as trays, cans, dairy products, sponges…
• Integrating automatic infeed solutions: batching, multilayers, orientation, pick&place…
• Manual infeed also possible
MAIN FEATURES
• High flat blanks magazine
• 4-arms rotary feeder
• Cycle completion to warranty proper gluing of packs
• Gluing by hot-melt glue melter
• Touchscreen HMI up to 15,6”
• Servodriven motors
• Ethercat multi-brand communication
• Stainless steel frame
• Dimensions: 5900 x 1605 x 2069 mm
232,28” x 63,19” x 81,46”
• Classification: IP54
• Mini/maxi packs sizes:
-
- Length : 50 – 300 mm / 1,97” – 11,81”
- Width : 60 – 300 mm / 2,36” – 11,81”
- Height : 25 – 150 mm / 0,98” – 5,91”
Easy & fast formats changeover
Up to 200 packs/min
Additional information
Machine rate | |
---|---|
Final packaging | |
Your product | Chocolate factory, Confectionery, Convenience food, Dairy product, Fruits & Vegetables |
